Description

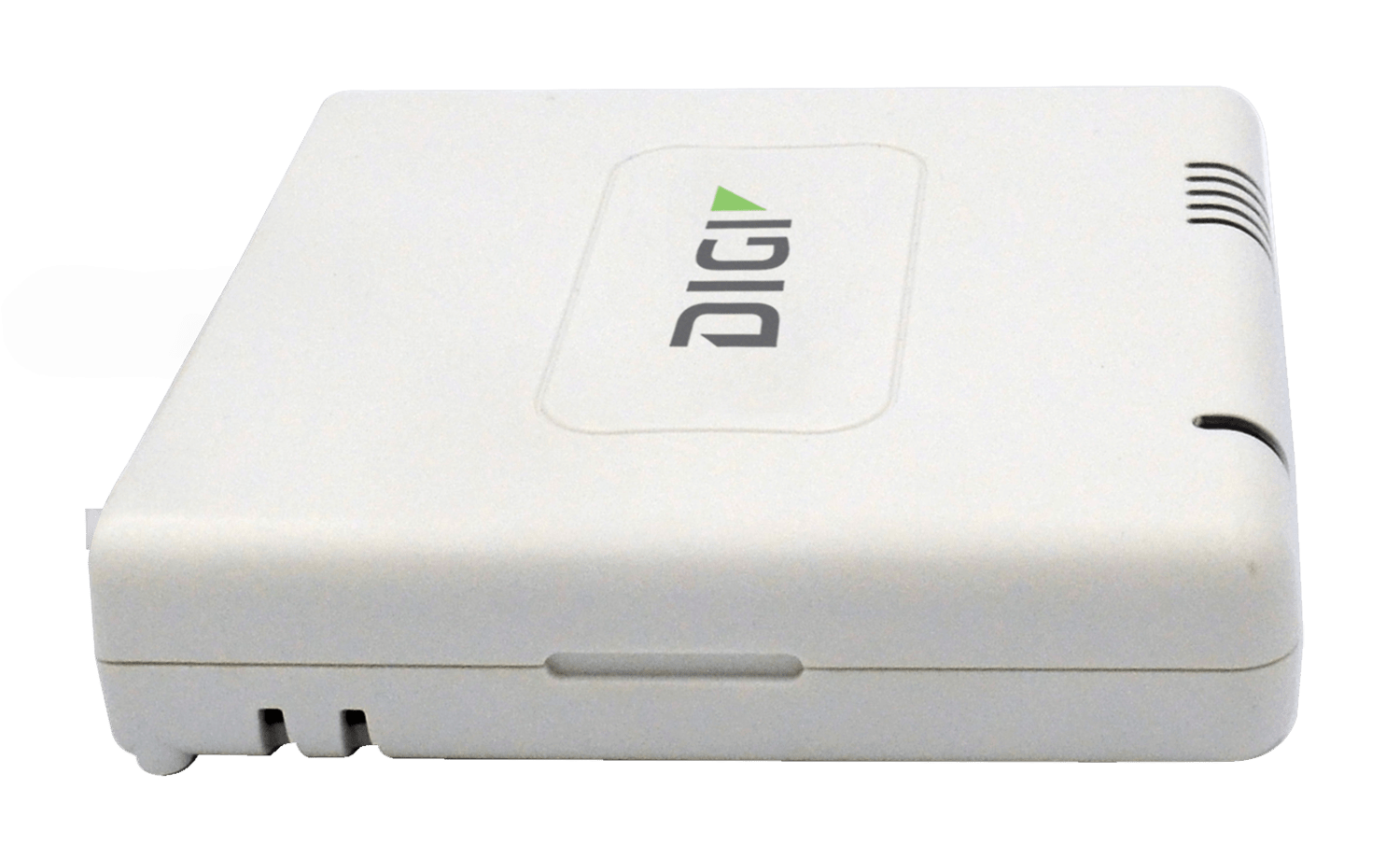

The Digi 6300-CX LTE cellular extender can help eliminate downtime by functioning as either the primary or backup cellular internet connection. It comes with a carrier-certified embedded cellular modem, for both 3G and 4G LTE. Compatible with any dual-WAN networking appliance, this compact high-performance device achieves more reliable connectivity with your existing equipment.
Deployments are streamlined due to the installation accessories – a disposable battery pack for site survey, PoE injector for optimising placement for best cellular reception, a mounting bracket — everything you need for a quick and easy install. Ensure maximum uptime and performance with the flexibility to deploy solutions wherever you need connectivity at a lower cost than traditional Internet connections.
The Digi centralised management platform provides easy setup, configuration and support for installations of Digi and third-party devices. Digi Remote Manager® and aView ™ offer web-based device management solutions to securely monitor and control Digi enterprise routers and gateways — and the health or your network — after deployment.
| SOFTWARE | |
| REMOTE MANAGEMENT | Digi aView™ (cloud based); SNMP v1/v2/v3 (support for Digi Remote Manager® 1Q2019) |
| PROTOCOLS | RIP, RIPng, OSPFv2, OSPFv3, BGP, Babel, IS-IS |
| SECURITY | AES, 3DES, IKEv1, OpenVPN, MODECFG, X509, SHA1, DES, MD5, RADIUS, TACACS+ |
| PHYSICAL | |
| DIMENSIONS (L x W x H) | 4.3 in x 4.3 in x 1.0 in (109 mm x 109 mm x 25 mm) |
| WEIGHT | 7.5 oz. (0.21 kg) |
| STATUS LEDs | (1) Power / Cell Type, (5) Signal cellular strength |
| POWER REQUIREMENTS | |
| POWER SUPPLY | 15V DC, 800mA; 100-240 AC |
| OTHER | Remote mounting kit, PoE injector and disposable battery for site survey |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 0° C to 40° C (32° F to 104° F) |
| STORAGE TEMP AND HUMIDITY | -13° F to 167° F (-25° C to 75° C); 5% to 95% non-Condensing |
| APPROVALS | |
| EMISSIONS / IMMUNITY | FCC Part 15, Subpart B, Class B; CE, C-Tick/RCM; CAN ICES-3(B)/NMB-3(B) |
| CELLULAR SPECIFICATIONS | |
| CELLULAR TYPE | CAT 6 LTE-A |
| CELL ANTENNA | (2) Dipole; Frequency: 700-960/1575-2700 hz; Gain: 1-4 dBi |
| SIM | (1) SIM card slot (size 2FF) |
| CELLULAR CERTIFICATIONS | Telstra (AU / NZ) |
| INTERFACES | |
| ETHERNET PORTS | (1) 10/100 Base-T Ethernet port |
| WARRANTY | |
| PRODUCT WARRANTY | 3 years |
Information/Spec Sheet: ds-6300-cx
